Knapheide Cargo Hauler Flatbed Truck
Designed to be the heavy-duty version of the Value-Master X units are available from 12’ to 26’ feet in length and are designed with beefy 7 gauge formed steel front and side rails and 4” structural steel cross sills.
Overview

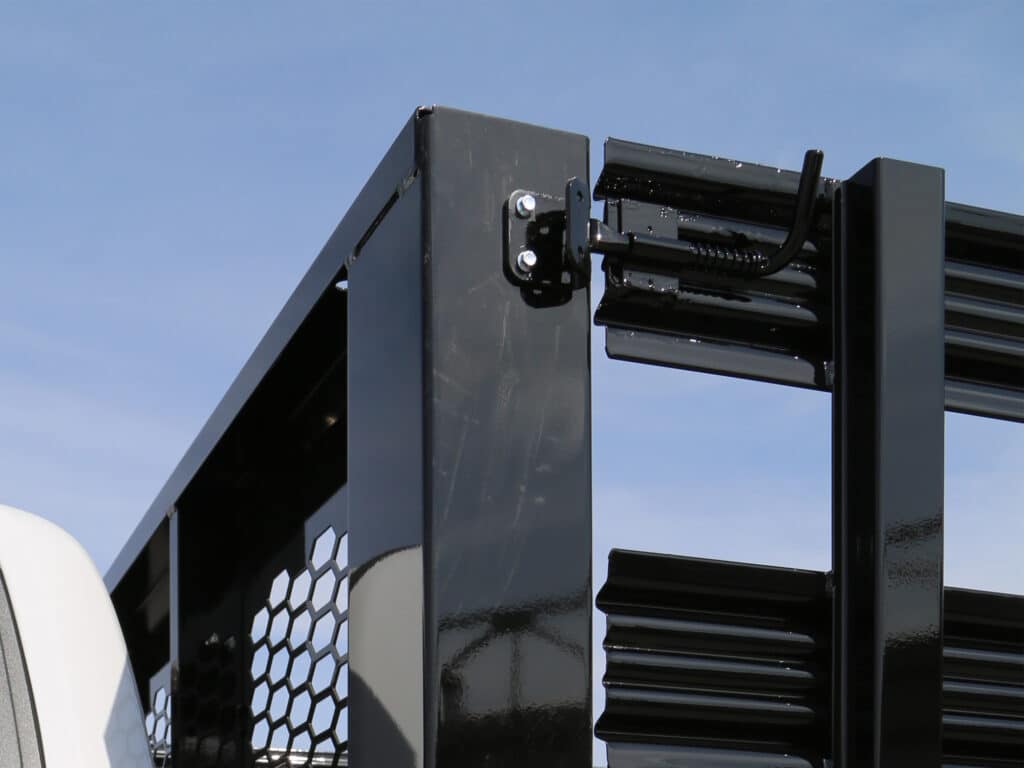

Three flooring options are available, wood, steel and treadplate. There are six different style bulkheads to choose from and five different side options including:
Stake Racks, Solid Sides, Refuse Sides, Drop Sides, Fixed Sides
Features
- Flatbed Truck Flooring Options:
- Wood flooring – 2” nominal treated #1-grade dense yellow pine with tongue and groove construction
- Smooth steel – 7 gauge high strength (36,000 psi yield strength)
- Treadplate – 3/16” treadplate
- Structural long sills with gusseted cross members, 5” on 12’ and shorter platforms, 7” on 14’ and longer platforms.Structural channel cross members spaced on 12” centers
- Flatbed Truck side rails and end rails are constructed of formed 7 gauge mild steel (36,000 psi)

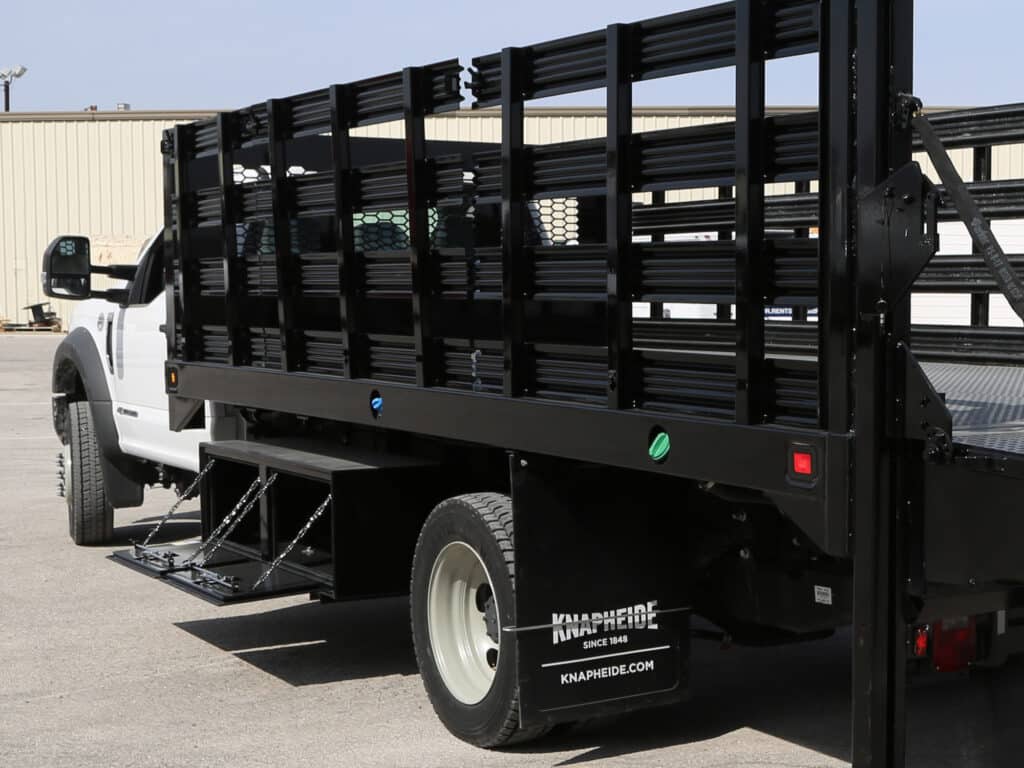

- Reinforced, internal stake pockets are sized to accept 2”x4” lumber as well as a wide array of Knapheide flatbed truck side options
- Complete immersion in Knapheide’s electrodeposition prime paint system for superior corrosion resistance
- Water based undercoating on underside of platform
- Durable oven-cured high gloss black finish top coat
