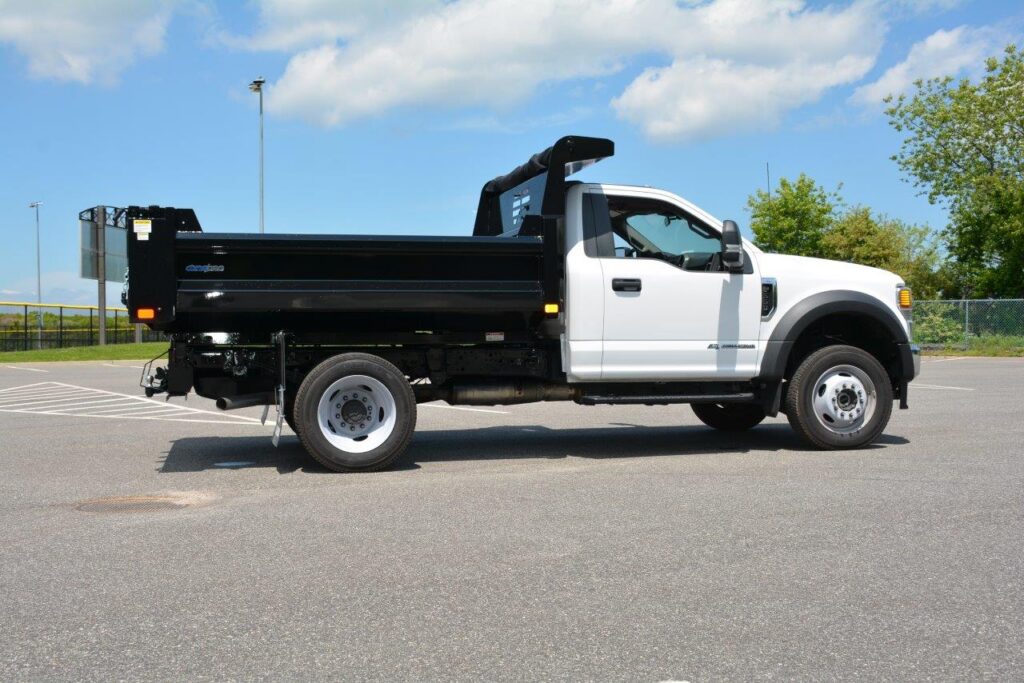

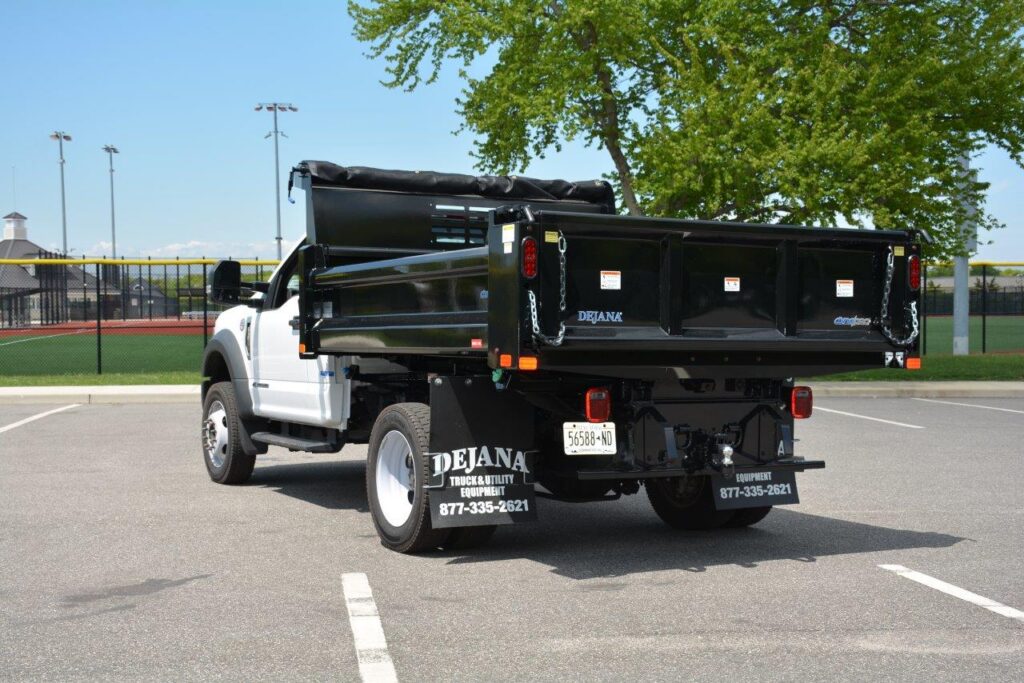

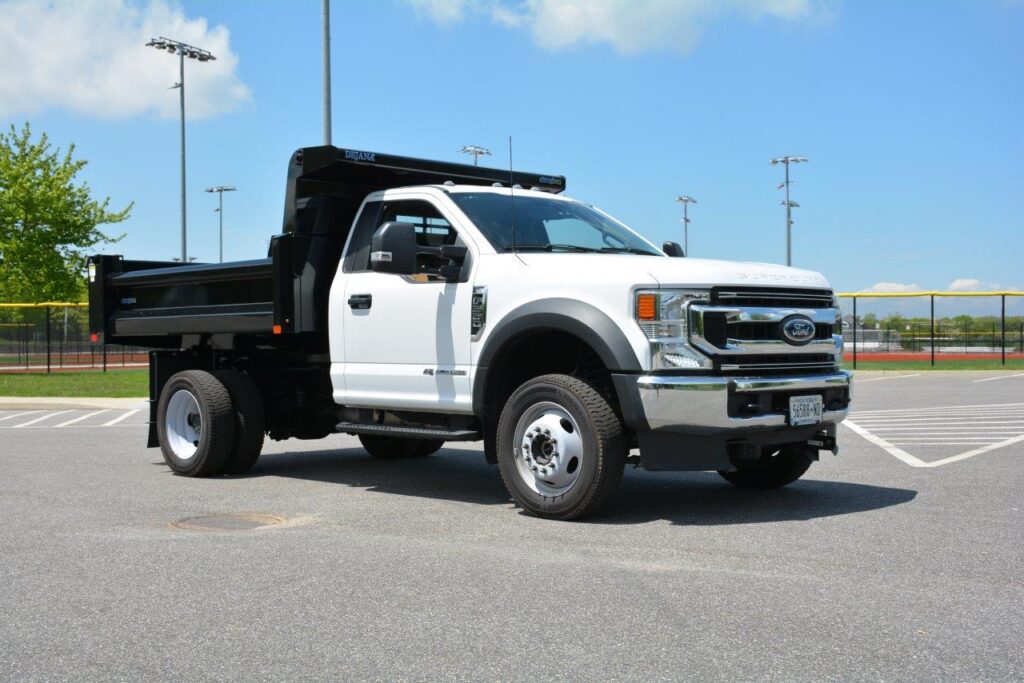

Dejana DynaPro 2-3 Yard Dump Bodies
Designed and tested for superior strength & performance! Also available with Fold-Down Sides, and stainless steel. (Specifications below)
DynaPro Specifications
- (a) ASTM A572 GR50 Alloy Steel for Superior Strength and Corrosion Resistance
- (b) Cross-memberless Understructure with Enclosed 10-ga. Trapezoidal Longsills
- Fully welded to unify body structure and provide superior strength
- Sleek, design with no salt pockets
- (c) Tubular Sidewall Construction
- 10 ga. inner & 12ga. outer wall interlaced with floor and underbody for superior strength & rigidity

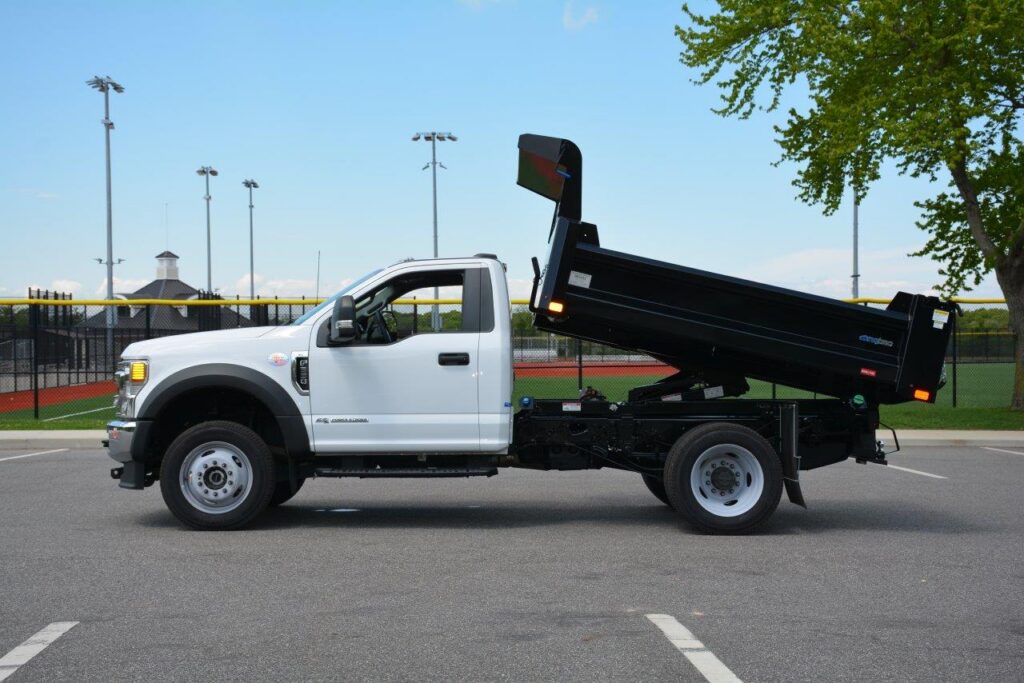

- (d) Scissor Lift & Sub-Frame
- Double acting heavy-duty hoist
- Redesigned subframe to eliminate welded joints
- Mounting brackets: sub-frame to chassis
- (e) Rear Hinge
- .250″ plates with .375″ doublers on outside of clevis
- 1″ OD zinc plated pin with cotter pin

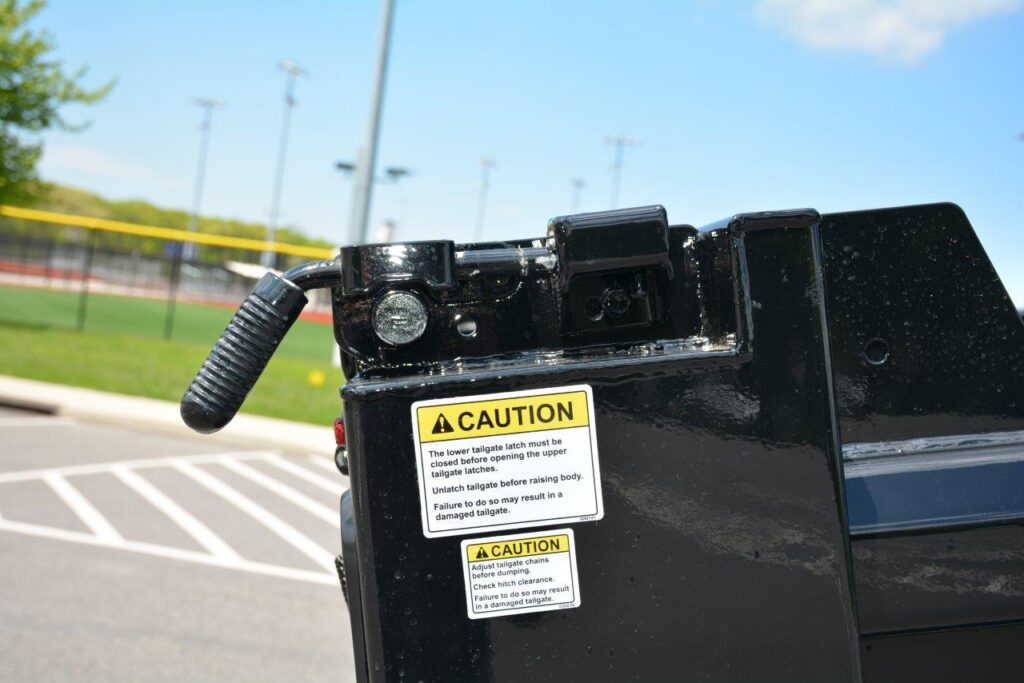

- (f) Slide Lock Upper Tailgate Latch
- 2-point latching system with ergonomic design to maximize leverage and Improve serviceability
- Built-in tarp bar retention hooks
- (g) Ergonomic Hand-held Controller
- Single or dual functionality (dump & plow)
Modular Cab Shield Options - Easy Replacement and Configurable with Strobe Options
Standard Height Quarter Cab Shield
- Overhang: 14.9″
- Clearance: 17″
- Window Area: 21″ x 9.6″
- Total Weight: 139 Lbs.
Standard Height Half Cab Shield
- Overhang: 21.8″
- Clearance: 18″
- Window Area: 21″ x 9.6″
- Total Weight: 159 Lbs.
Mid-Height Quarter Cab Shield
- Overhang: 14.3″
- Clearance: 20.6-23″
- Window Area: 21″ x 9.6″
- Total Weight: 161 Lbs.
Tall-Height Quarter Cab Shield
- Overhang: 14.3″
- Clearance: 24.6-27″
- Window Area: 21″ x 9.6″
- Total Weight: 176 Lbs.
Options & Accessories
- Pull-out ladder (powder coated or stainless steel)
- Asphalt apron
- Coal chute tailgate
- Toolboxes
- Cab shield lights
- 6” side board pockets
- Dejana mudflaps
- Tarp
- Pintle plate w/ D-rings
- 7-Pin trailer plug end
- Back up alarm
- Body up switch/ light
- Brake controller
- Reflective tape and more…
