Western Impact UTV Snow Plow

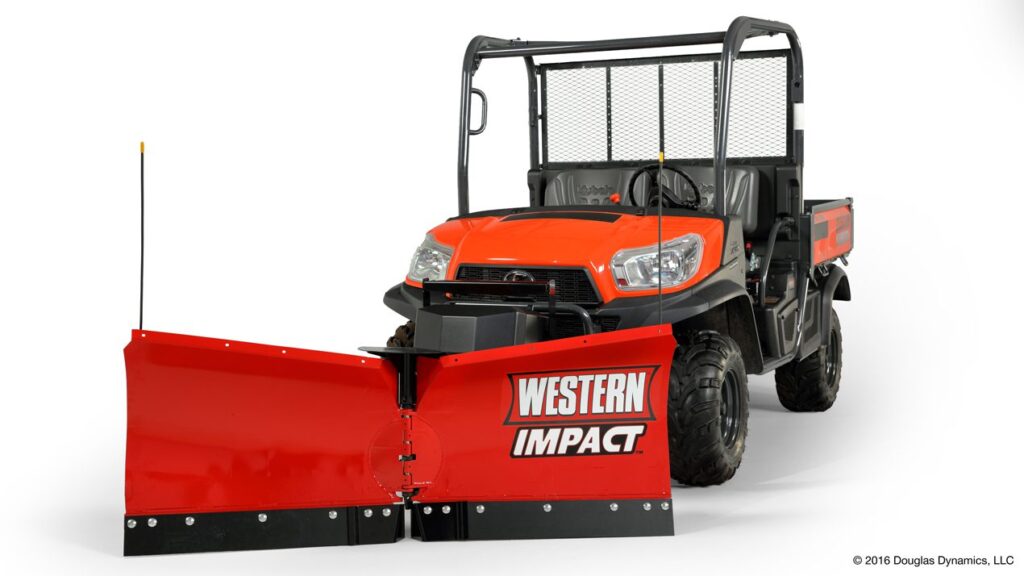

The WESTERN® IMPACT™ UTV snow plow is a professional-grade v-plow designed and built exclusively for utility vehicles. This tough, 6′ wide v-plow easily adapts to handle 5′ sidewalks and gates in angle, scoop or V mode.

Features

Plow Blade Construction

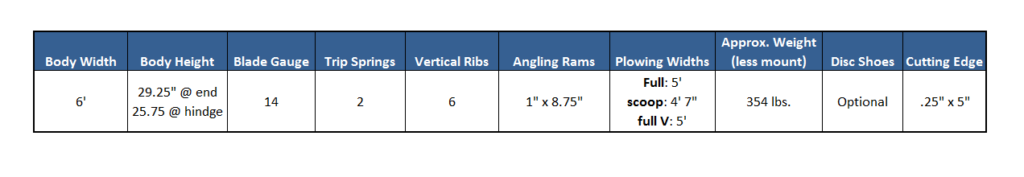

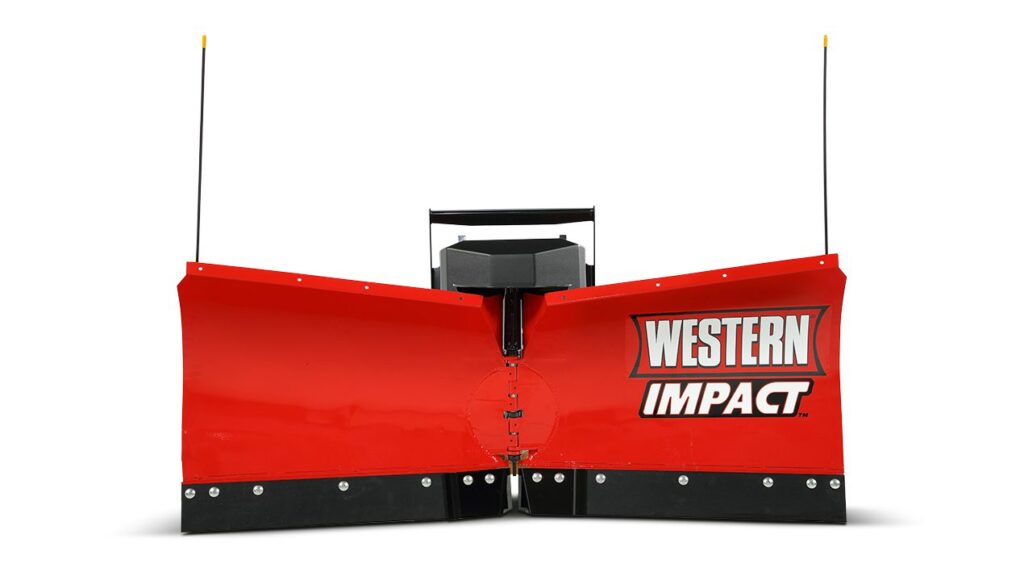

  • The IMPACT™ flared v-plow blades go from a 25¼” center height to a full 29¼” at the outer edge.
  • The 14-gauge powder coated steel flared moldboard is 6′ wide and comes with a standard 5″ high carbon steel cutting edge, reducing wear and extending the life of the blade.

Structural Reinforcement

  • Six vertical ribs, coupled with high-strength, low-weight, alloy steel components provide a favorable strength-to-weight ratio keeping stress off of the UTV frame.
  • A 3/4″ diameter, steel center pin resides within a three connection point hinge, keeping the wings tight for improved performance.

Double-Acting Cylinders

  • A standard feature on the IMPACT™ UTV snow plow, UltraLock double-acting cylinders allow the operator to use the v-plow in straight blade mode by locking the wings together instead of having to toggle each wing independently.
  • The double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

Steel Center Gap Cover

  • For the cleanest pass in any position, the IMPACT™ UTV snow plow has a snow control deflector over the center hinge to help prevent snow from being lost over the top.

Reliable Hydraulics

  • Fully enclosed components are protected from the elements.
  • Hydraulic Scrape Lock holds the blade down for more efficient scraping and clean back dragging.
  • Manufactured to ensure the highest standard of quality and reliability, making it not only fast and responsive but also built to last season after season.

Trip Protection

  • Each blade features independent trip edge design with heavy-duty coil springs for protection when encountering bumps and obstacles.
  • Whether in V, scoop, or straight blade configuration, the trip edge helps protect the plow, the truck, and the operator.
  • Since only the edge trips, snow remains in front of the blade, so you can keep going without spilling the entire load of snow.

Ground Clearance

  • The removable receivers and low profile undercarriage provide exceptional ground clearance and maximize the ramp angle, so your unit will be trail ready when the plow is not attached.

Width Adjustment

  • Fully angled or V mode, the plowing path is 5′ wide, & 4′ 7″ in scoop.
  • For UTVs with a wider wheel base, a width adjustment setting is available to make your plowing path wider in these positions.
  • Using the alternate setting, the plowing width is 5′ 6″ when fully angled or in V, and 5′ 1″ in scoop.

UTV Mounting System

  • With the receiver brackets installed on your utility vehicle, either drive in or manually push the plow into the receivers.
  • Push up on the headgear to engage the hitch pins in the receiver holes, then slide the handle to lock the hitch pins in place.
  • Finally, connect the electrical plug.Detaching the plow is just as easy. The receivers are detachable, to maintain ground clearance.
