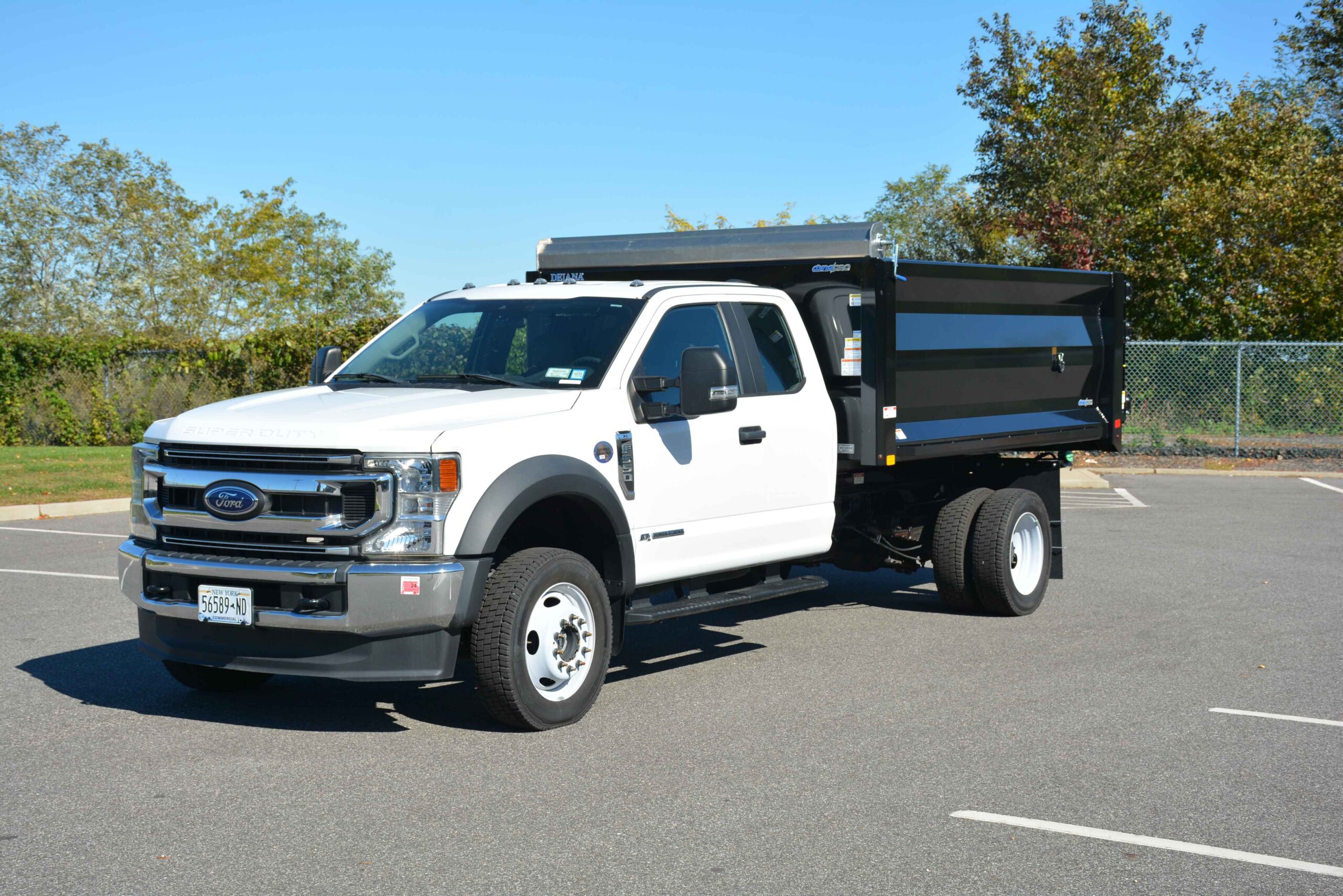

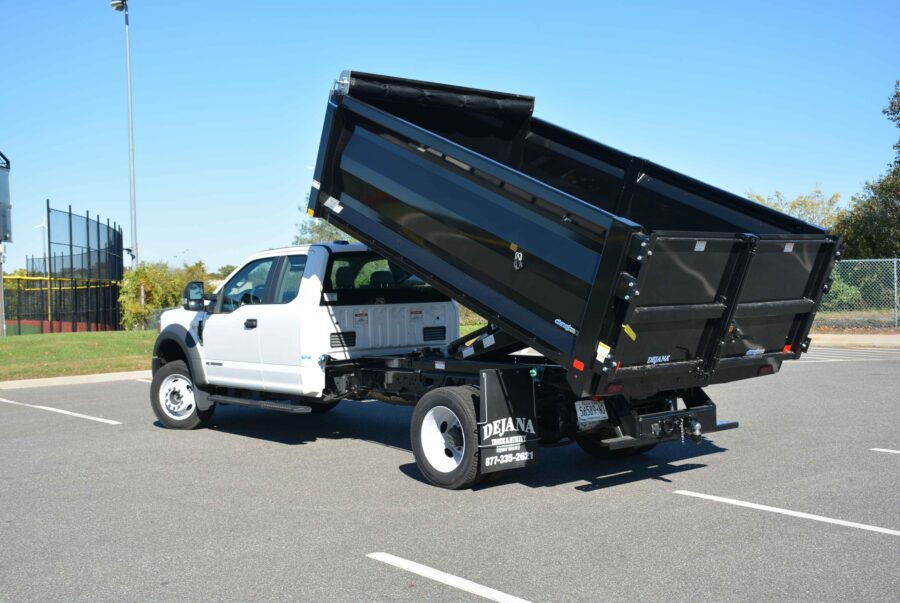

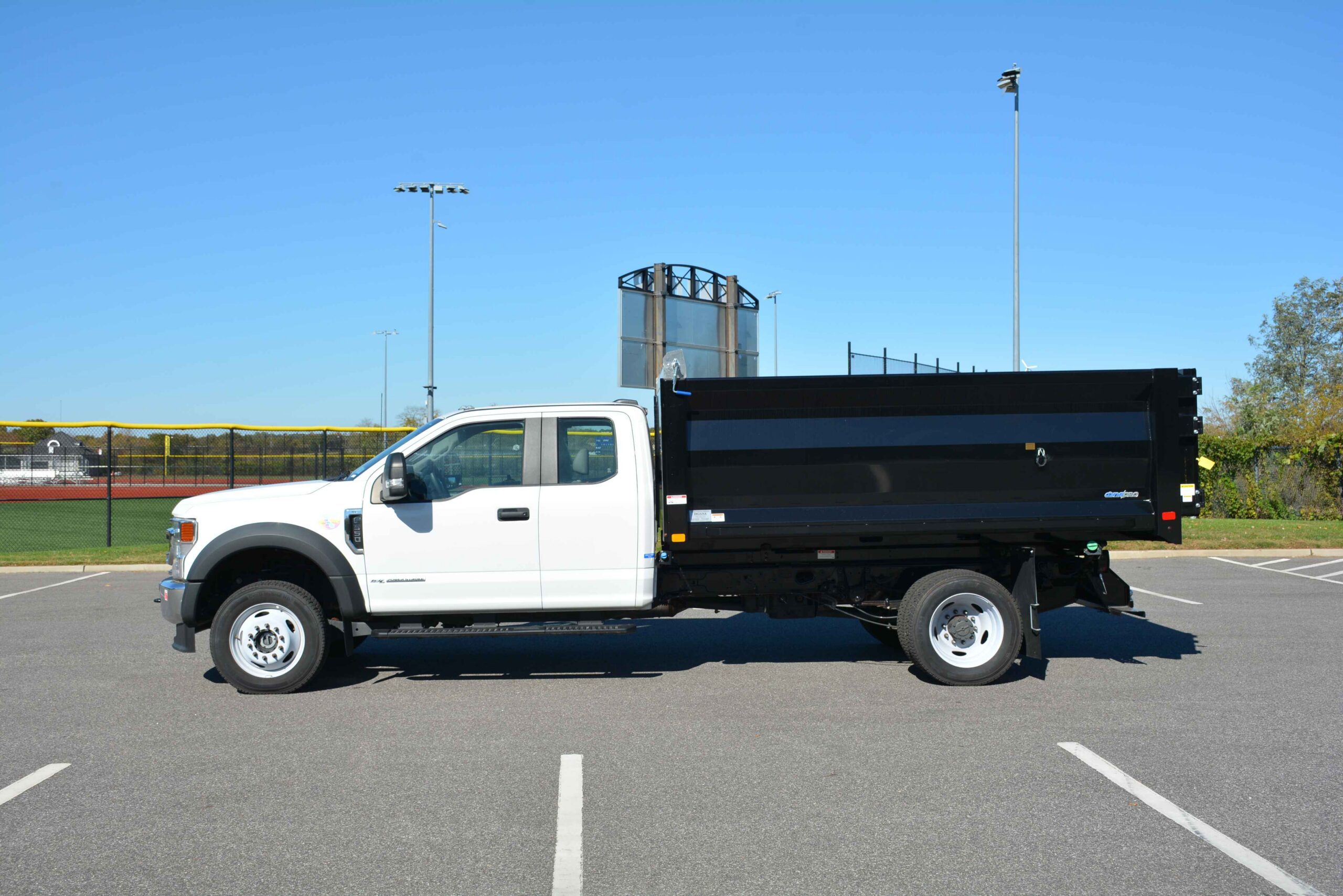

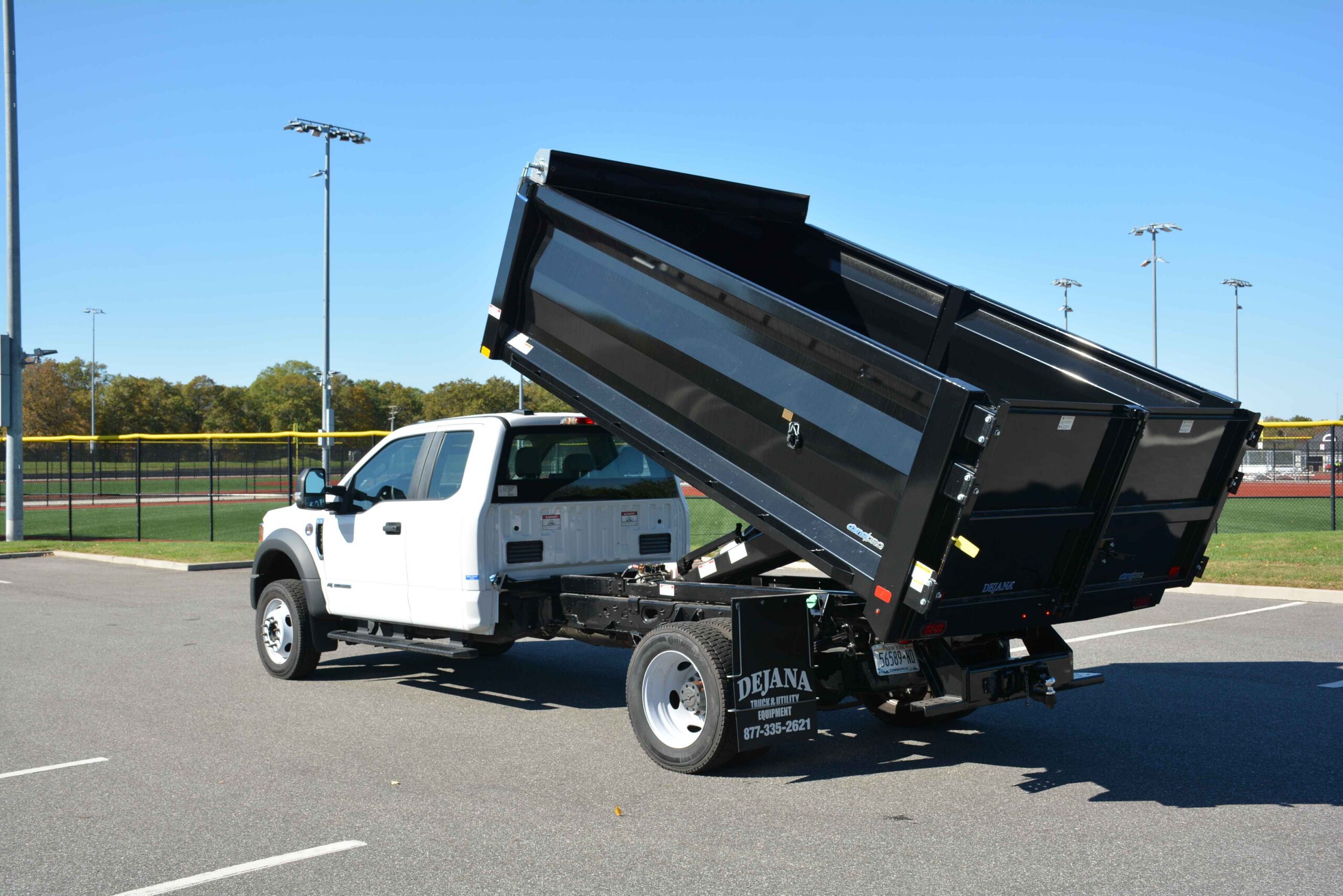

Dejana DynaPro Landscaper Bodies

Designed and tested for superior strength & performance! Also available with vented or solid removable racks. (Specifications below)

General Specifications

  • Available in 9.5′ & 12′ Lengths
  • 96″ Body Width
  • Available in 40″ and 48″ Side Heights
  • Interior Useable Length: 107.5″ (9.5’) and 145″ (12’)
  • 50″ Curbside Door Opening
  • ASTM A572 GR50 Alloy Steel
  • Black Semi-gloss Powdercoat
  • Pre-punched Accessory Holes
  • New Ergonomic Hand-held Controller standard
    • Optional Dual Functionality (Dump & Plow) Available.
  • Formed C-channel Longsills (.188″)
  • 3 Ribs (.188″)
  • 2 Piece 10ga. Floor
  • Fully Welded Steel Rubrail
  • 12ga. Bulkhead

Electrical Specifications

  • (2) 6″ Rubber Grommet Mounted S/T/T/R Tail Lights
  • (7) 3/4″ Red Round Rear Skirt Marker Lights
    • (3) Rear Skirt
    • (1) Rear Side (each side)
    • (2) 3/4″ Amber Round Front Marker Lights, 45 Bevel Mounted

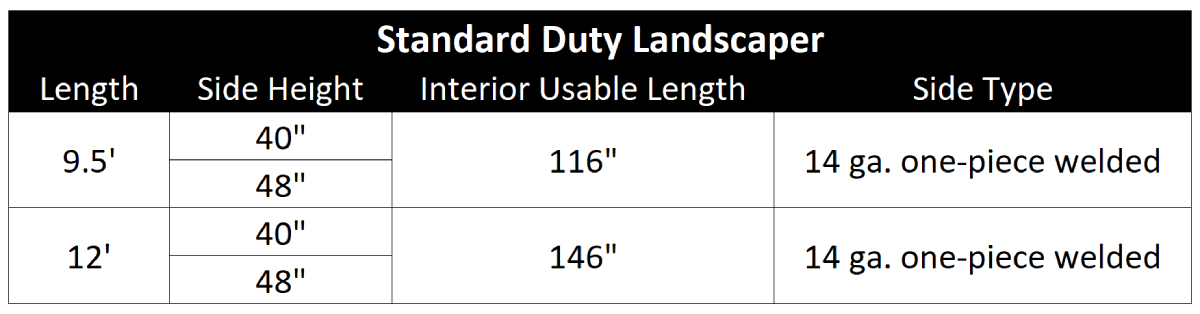

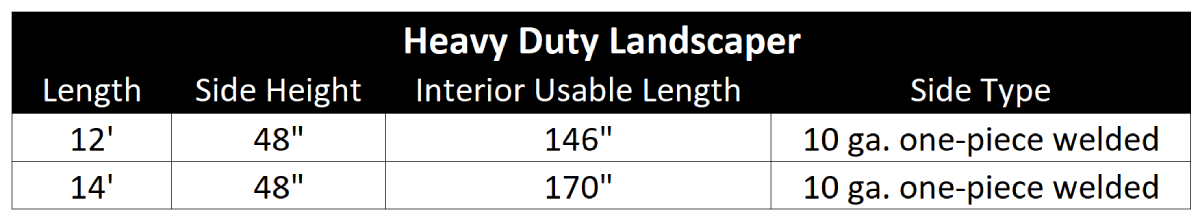

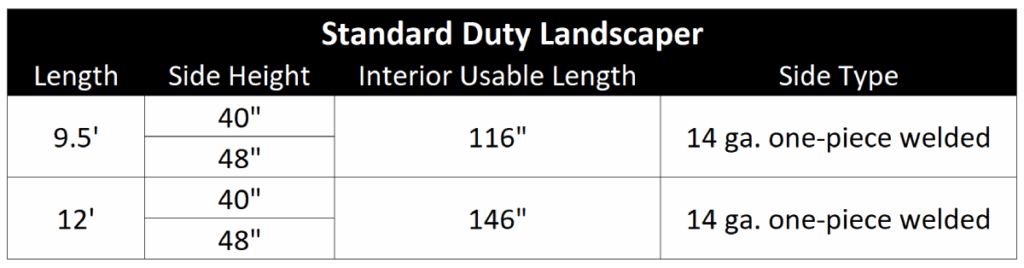

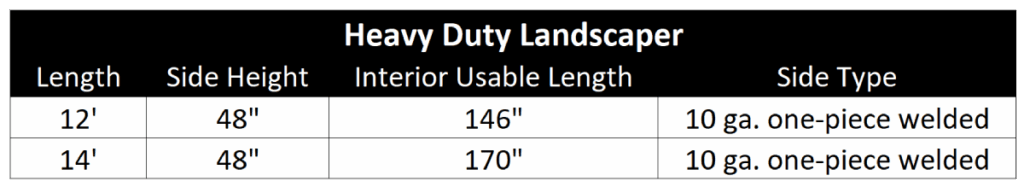

Sizes & Capacities

dynapro-landscaper-solid-side-specifications

Solid Side Landscapers - LS

  • Interchangeable Rear Door Options:
    • 2 Piece (Full Barn Doors)
    • 3 Piece (Tailgate & Barn Doors)
  • 12ga Panels
  • 12ga. Stakes
  • 180 degree Swing Curbside Access Door
    • 50″ W Opening
    • 12ga. Panel Thickness
    • 12ga. Vertical Support
    • Bar Lock Latch w/ Hasp
    • Retention Clip
    • Integral Grab Handle
  • 2 Piece Rear Door:
    • 12ga. Panel Thickness
    • (2) 7ga. Hinges per Door
    • 270 degree Door Swing
  • 3 Piece Rear Door:
    • 17.5″ Tailgate Height
    • Slide Locking Tail Gate Latches
    • 12ga. Panel Thickness
    • (2) 7ga. Hinges Per Overhead Door
    • 270 Degree Door Swing
  • Optional Full Cab Shield Specifications:
    • 42” Forward Distance
    • 14ga. Panel Thickness
    • Available in (3) Cab Heights
      • 50.5”, 56.5”, 60.5”

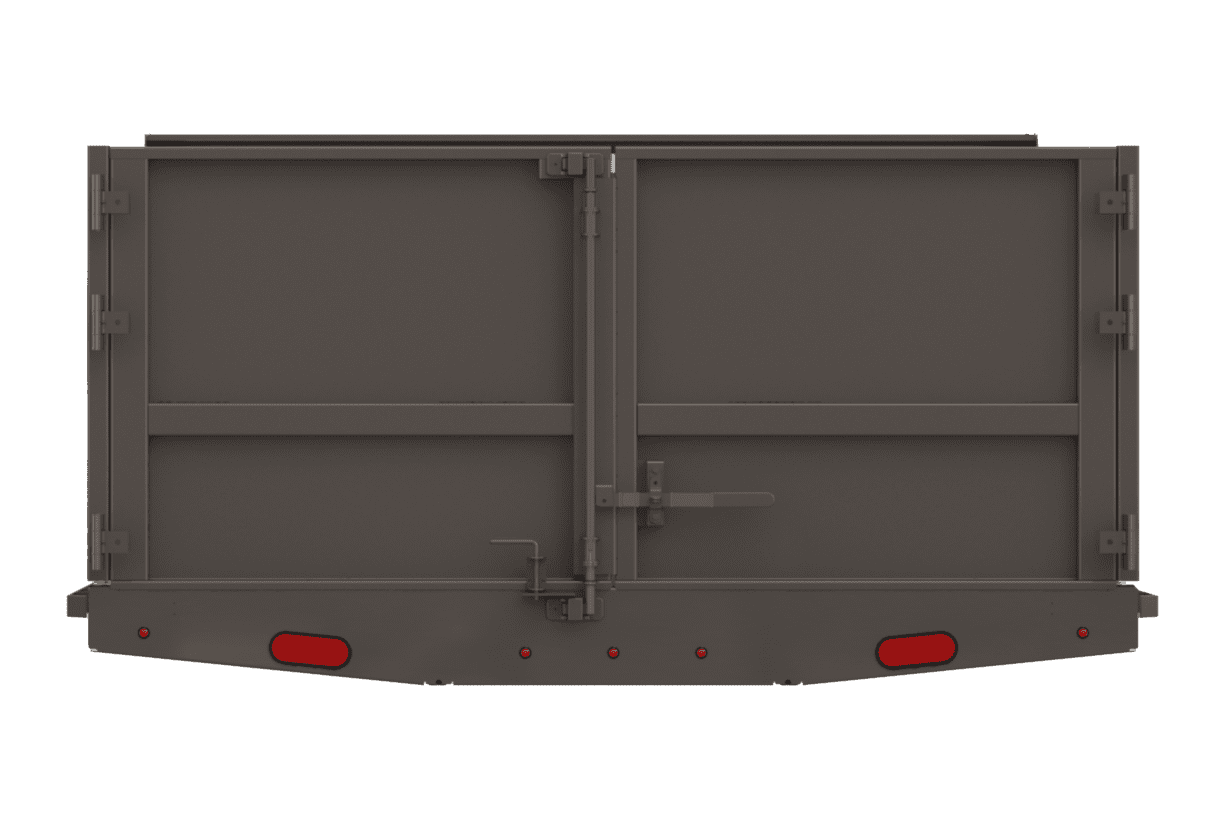

dynapro-landscaper-2-piece-tailgate-2

Full height barn doors
12ga. panel thickness
(2) 7ga. Hinges per door
270 Degree door swing w/ retention latches

2-Piece Rear Door
dynapro-landscaper-3-piece-tailgate-2

Tailgate w/ barn doors above
Slide locking tail gate latches
12ga. panel thickness
(2) 7ga. Hinges per door
270 Degree door swing w/ retention latches

3-Piece Rear Door
dynapro-landscaper-3-piece-tailgate-coalchute-2

12ga. panel thickness
(2) 7ga. Hinges per door
Coal chute factory installed in center
Double linkage lift mechanism
6” Opening height

3-Piece with Coal Chute

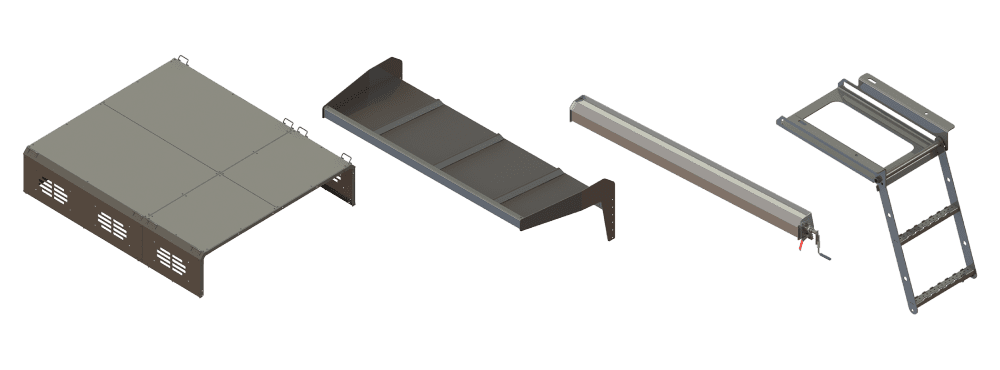

Options & Accessories

dynapro-landscaper-options-3

  • Bolt-on Chipper Top (Available for Solid Side only)
    • Compatible with cab shield
  • 42″ Deep Bolt-on Full Cab Shield
    • Cab height range from frame: 50.5”, 56.5”, 60.5”
  • Bolt-on Tarp Housing
    • Includes rear retaining hooks
  • Bolt-on Underbody Access Ladder
    • Located under curbside access
      door.
