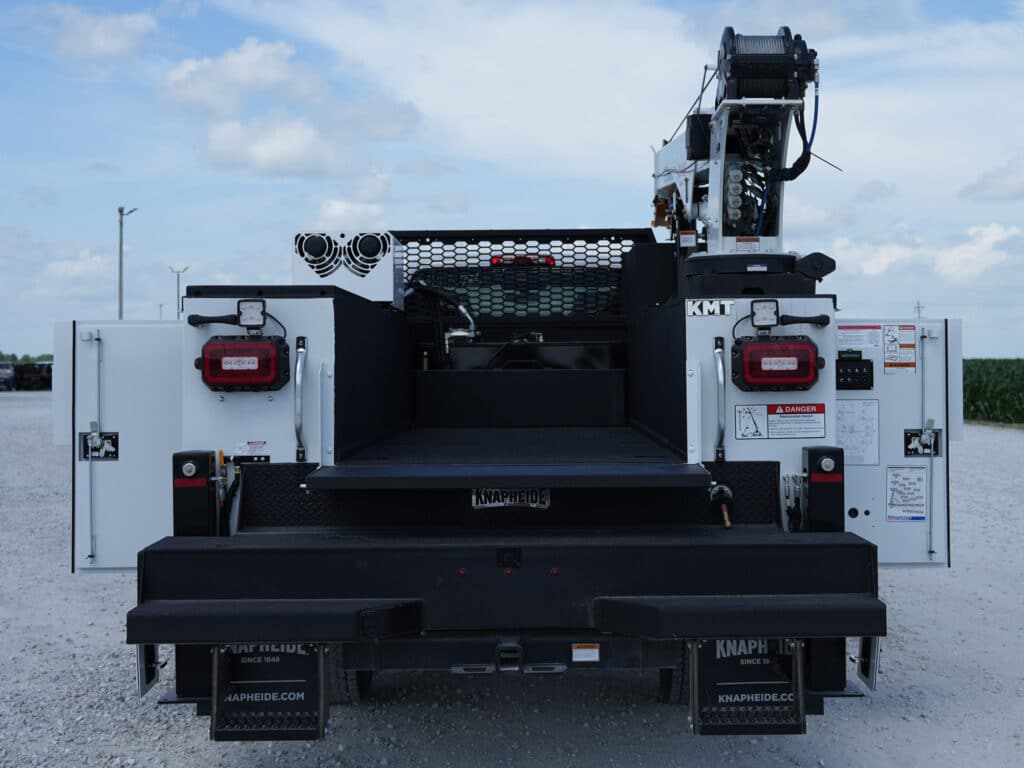

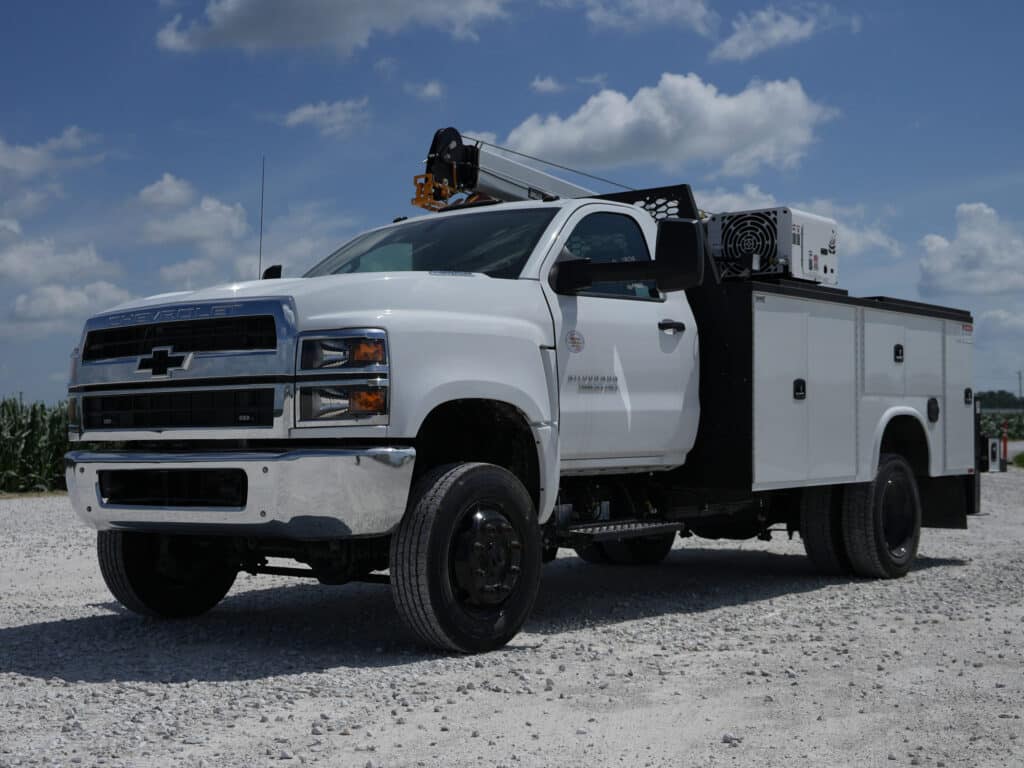

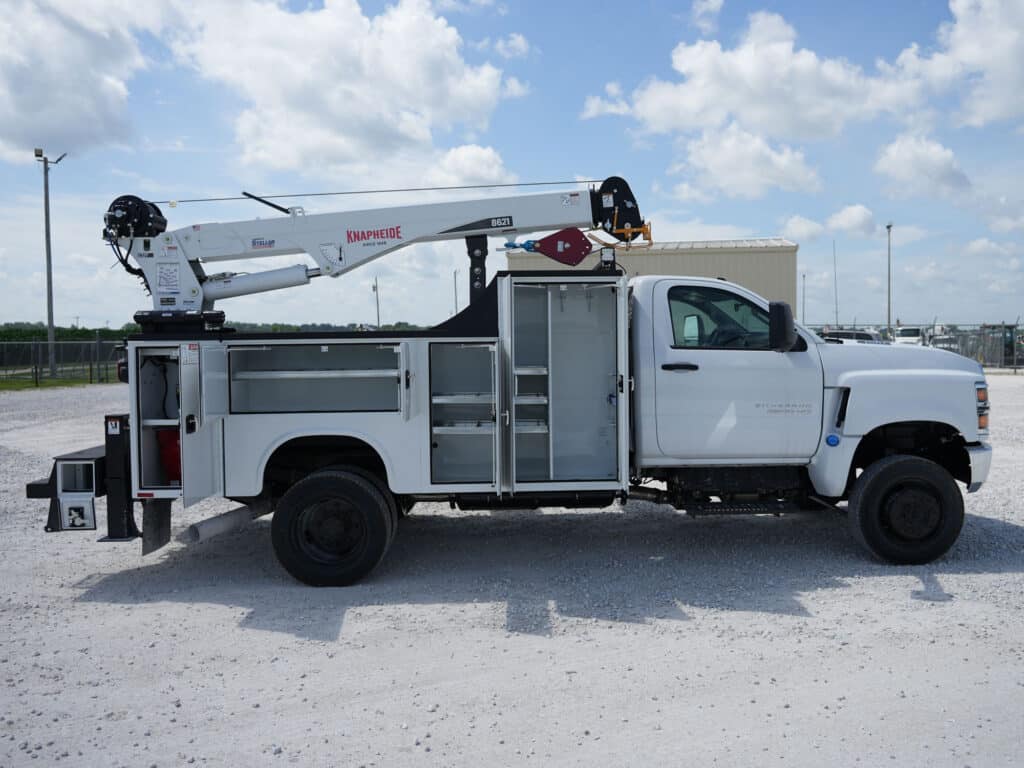

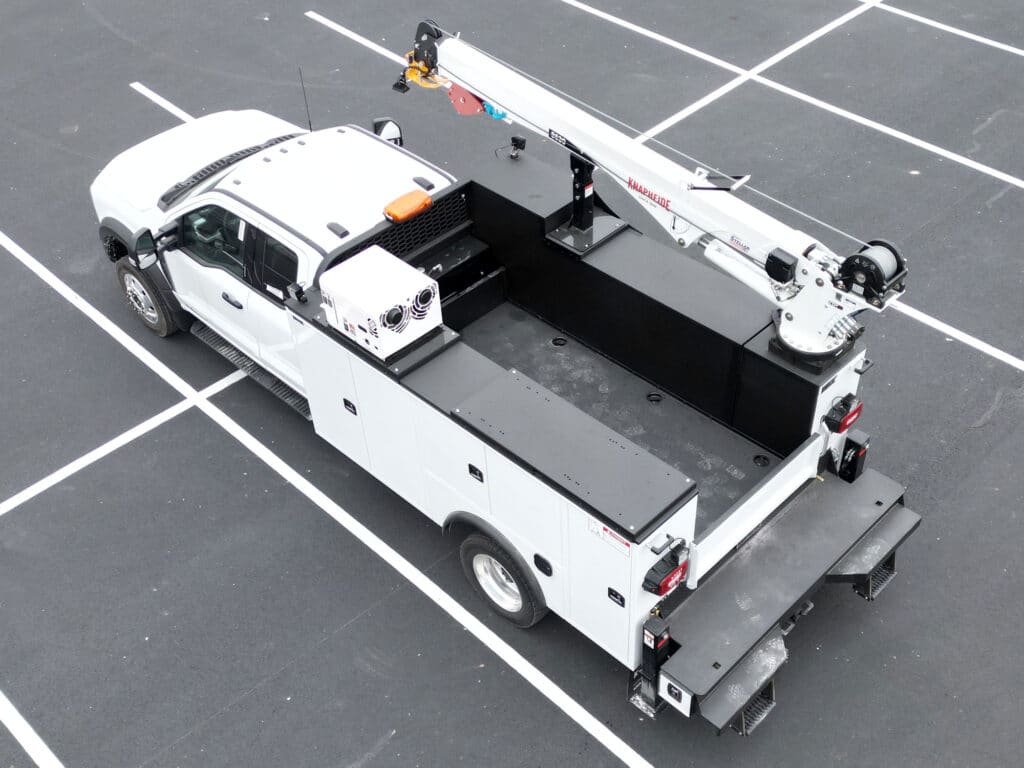

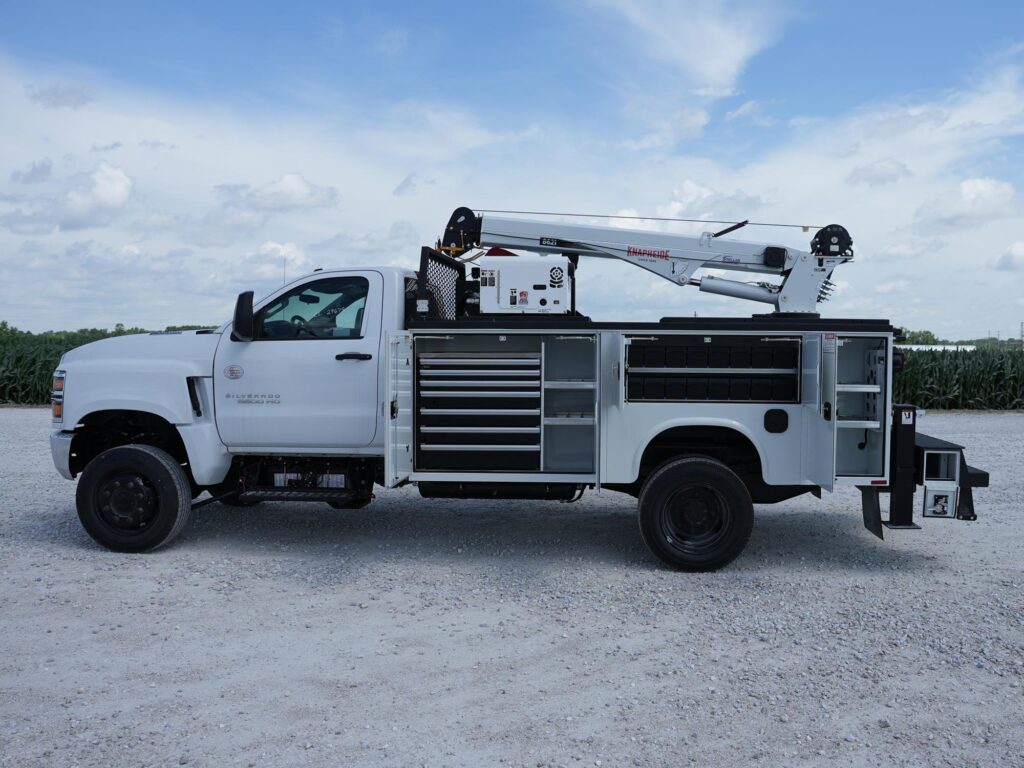

Knapheide KMT1 Mechanics Truck
The strong Knapheide body together with leading cranes and compressors come together to create the industry’s best mechanics truck filled with value maximizing standard features.
Features
- Knapheide 6132DLR-44KJ Mechanics Truck 11 ft crane body with torq-isolator crane support system.
- A-40 galvanneal compartments and doors
- 3/16″ treadplate floor and 1 /8″ treadplate compartment tops and backs, full-seam continuously welded.
- 12 gauge bottom and end panels of compartments and double panel 14 gauge outside panels and hat section reinforced doors.
- Exclusive 12 stage K-coat protection includes 12 stages of cleaning, pre-treat, electrodeposition prime coat, rinse, and curing.
- (6) recessed cargo tie-downs in floor – 6,000# capacity
- (2) heavy duty aluminum grab handles
- LED stop/tail/turn lights, clearance lights, & backup lights
- 21″ work surface bumper with thru compartment, vise plate, & 2″ receiver tube.
- (2) grip strut flex steps, (1) each side of rear tailshelf.
- 16″ high double panel slam tailgate with center latch and flat space for tailgate graphics
- Knapliner: Commercial grade spray-on bed liner applied to cargo floor area, sides, compartment tops, bulkhead, tailgate, and rear bumper
- Stellar 7621 Crane: 38,000 ft-lbs, has 7,500lbs capacity
- 21 ‘ hydraulic reach, planetary winch 60’/min speed, and double-acting cylinders w/integral holding valves.
- Filters, crane hook, snatch block, anti-two block device & hydraulic shutdown
- 3/8″ cable, boom support
- Wireless remote control (RF) with back up pendant control, control panel
- PTO, hydraulic pump for crane, hydraulic reservoir with guard
- 40 CFM reciprocating hydraulic air compressor with Reelcraft 50′ x 1/2″ hose reel and roller fairlead through the right rear compartment.
- FLR system and underbody air tank included with air compressor
- Side Compartments: 44″ high side packs and 60″ high right front vertical compartment with stainless 3-pt T -handles
- 1st Vertical Side Compartment: AE 7 drawer unit – 3-3″ high drawers, 3-5″ high drawers, and 1-7″ high drawer (street side) I Gas bottle retainer (2 bottles), vented top & bottom (curbside)
- 2nd Vertical Side Compartment: 2 adjustable divider shelves with 4 dividers (street and curbside)
- 1st Horizontal Side Compartment: Bolt bin storage unit (street side) I bolt-in divider shelf with 8 dividers (curbside)
- 3rd Vertical Side Compartment: 2 adjustable divider shelves with 4 dividers each (street side) / Fixed Shelf (curbside)
- Master Locking System: Secures one entire side of compartments with a padlock in one easy motion and acts as a visual theft deterrent
- Cab Protector: with punched window
- Auxiliary Lighting: (4) LED work lights installed
- Outriggers: Hydraulic out I hydraulic down at rear
- Backup Alarm: 97 db audible alarm
- Finish Paint: Body Interior/ Exterior to be painted single stage to match chassis
- Compartment Lights: LED compartment lights installed and wired to control panel
- Freight to Kings Park, NY
