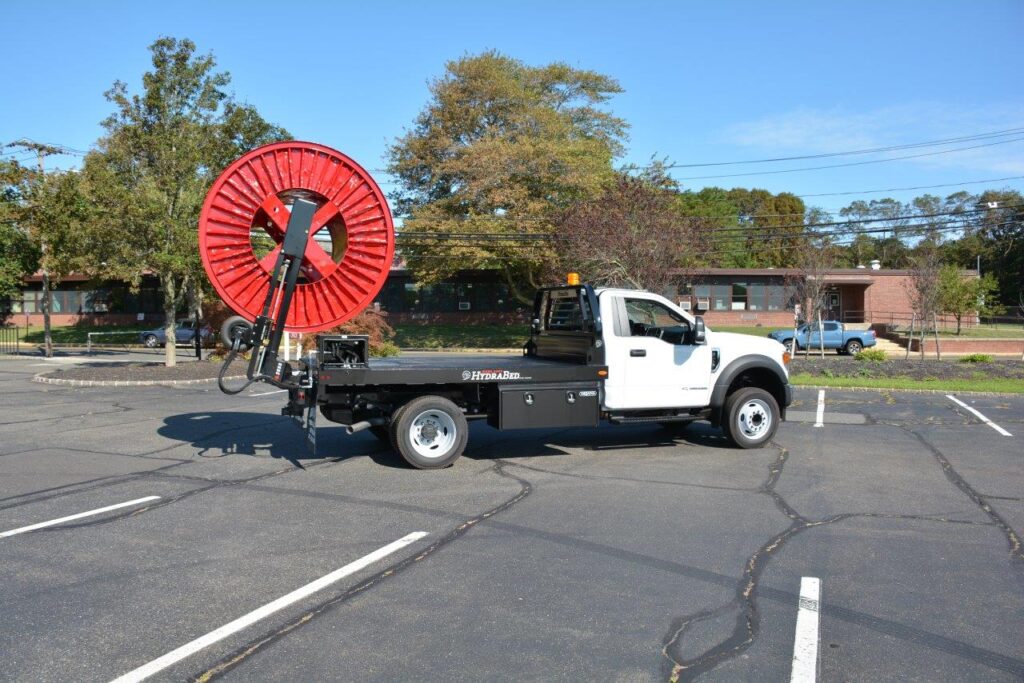

Overview
• 5,000 lbs. Lift Capacity • Oil Flow 4.5-11 GPM at an idle up to 2,000 truck RPM • 2,200 PSI Hydraulic System Pressure • 2 Year System Warranty (Hydraulics & Components) • 5 Year Structural Warranty (Welds & Mechanical Components)
Specifications
- 102” Max Diameter
- 56” Max Width

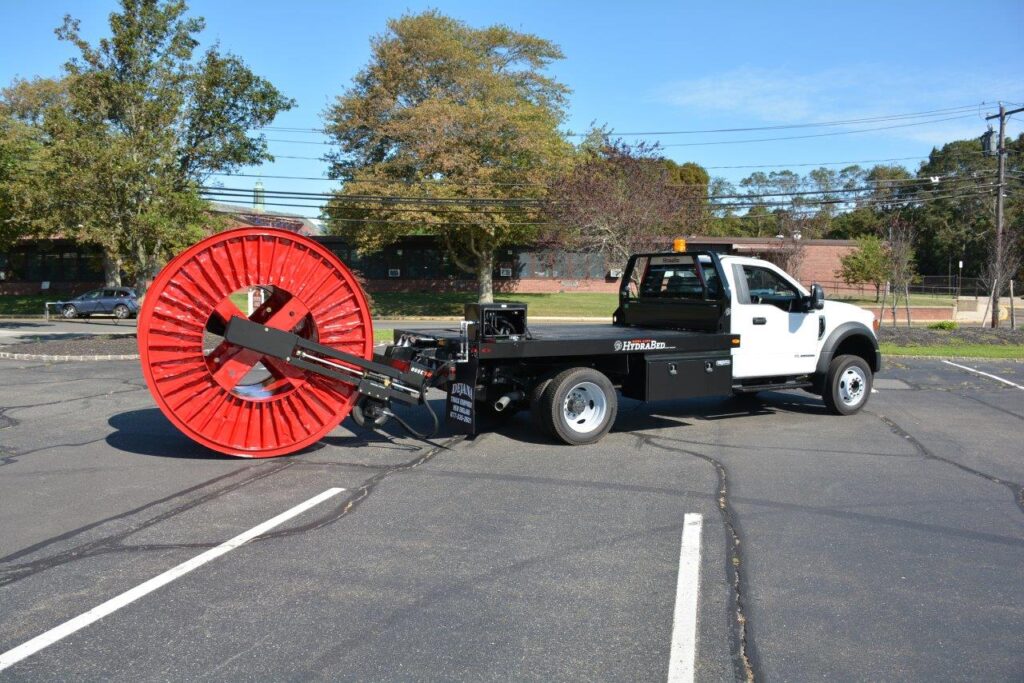

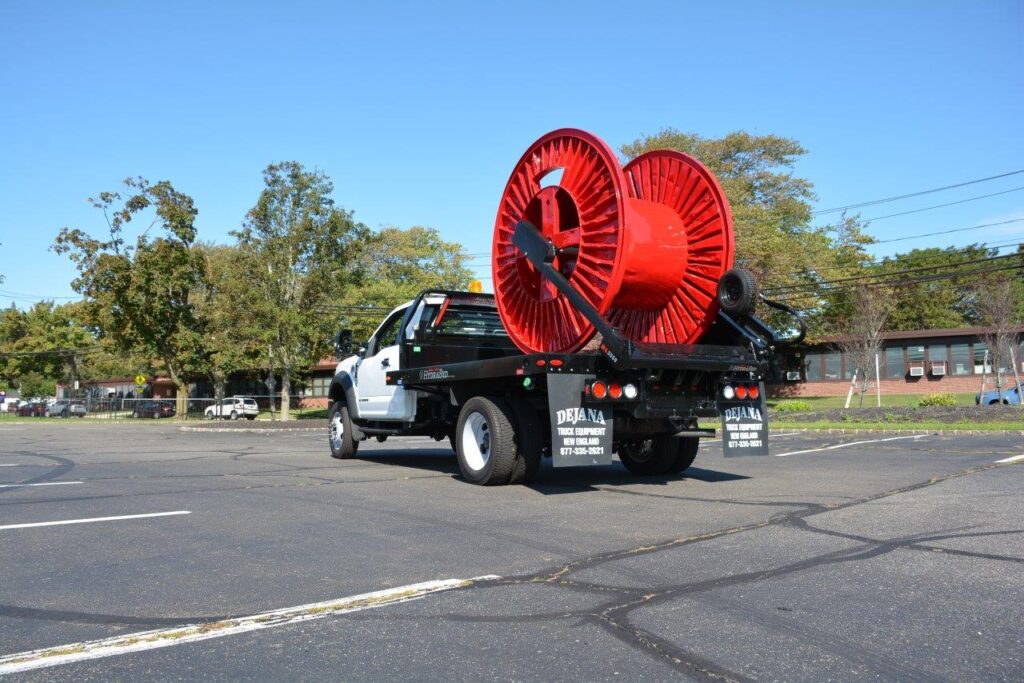

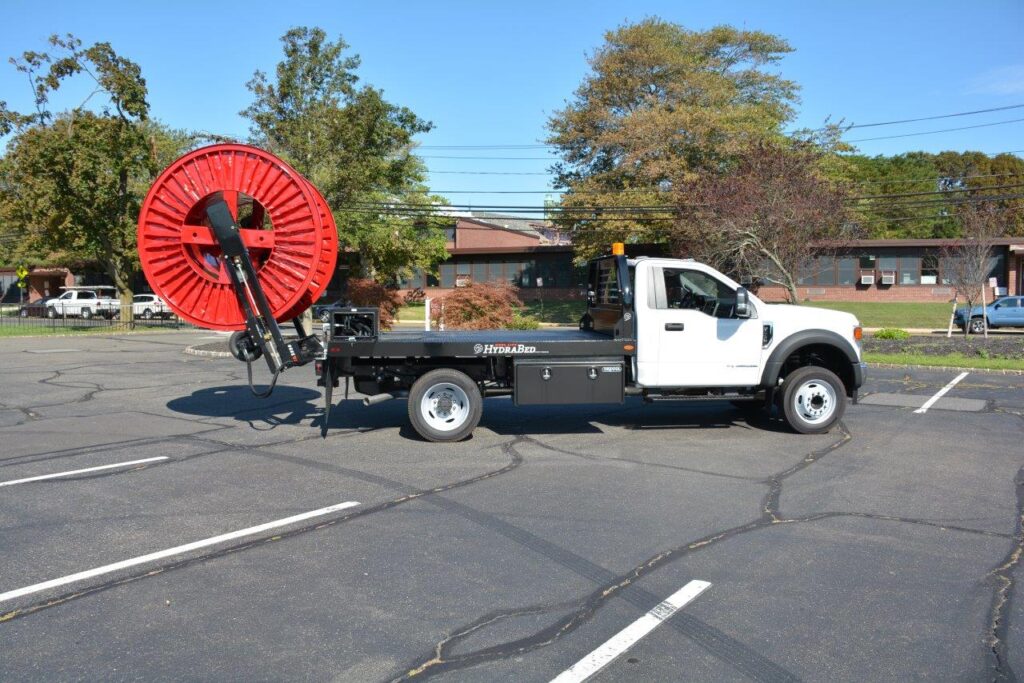

- Reel Engagement Jaw
- Automatic Snap Latch w/ One-hand Opening
- Instantly Contained Positive Close Latch w/ Wide Opening
- Drophitch w/ Category 5 Receiver Tube
- 10 gal. Hydraulic Oil Reservoir
- Backlit Name Badge

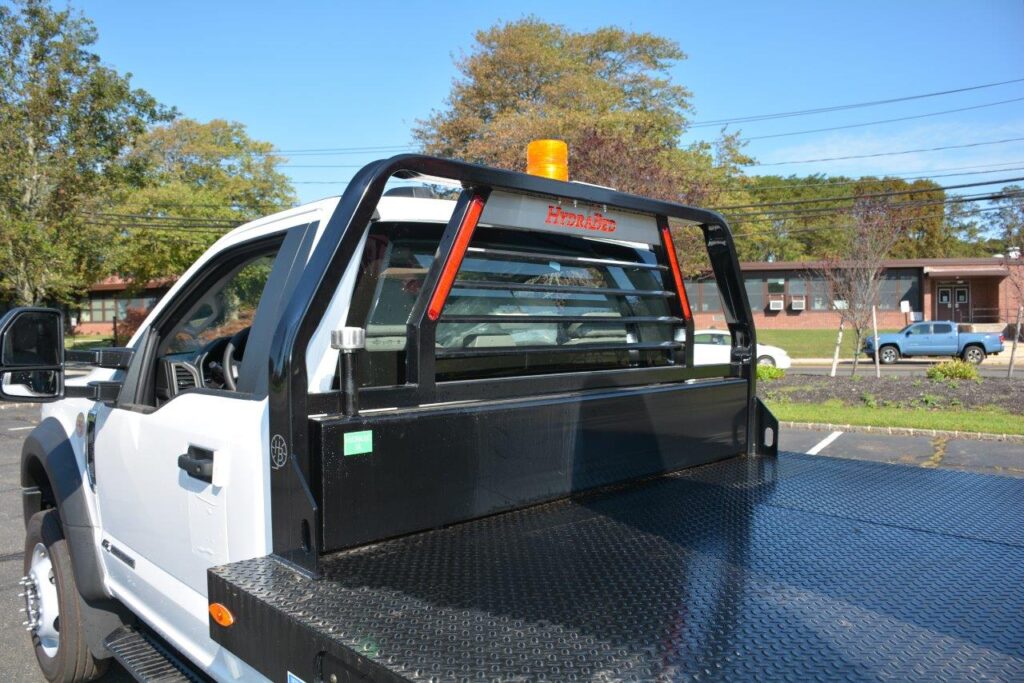

- Louvered Headache Rack
- 4” Wide Headache Rack w/ Beacon Light Mounts
- 3/8” Thick by 6” Tall Side Walls
- (2) 4.5” Bore by 20” Stroke cylinders (5,000 lbs. lift capacity)

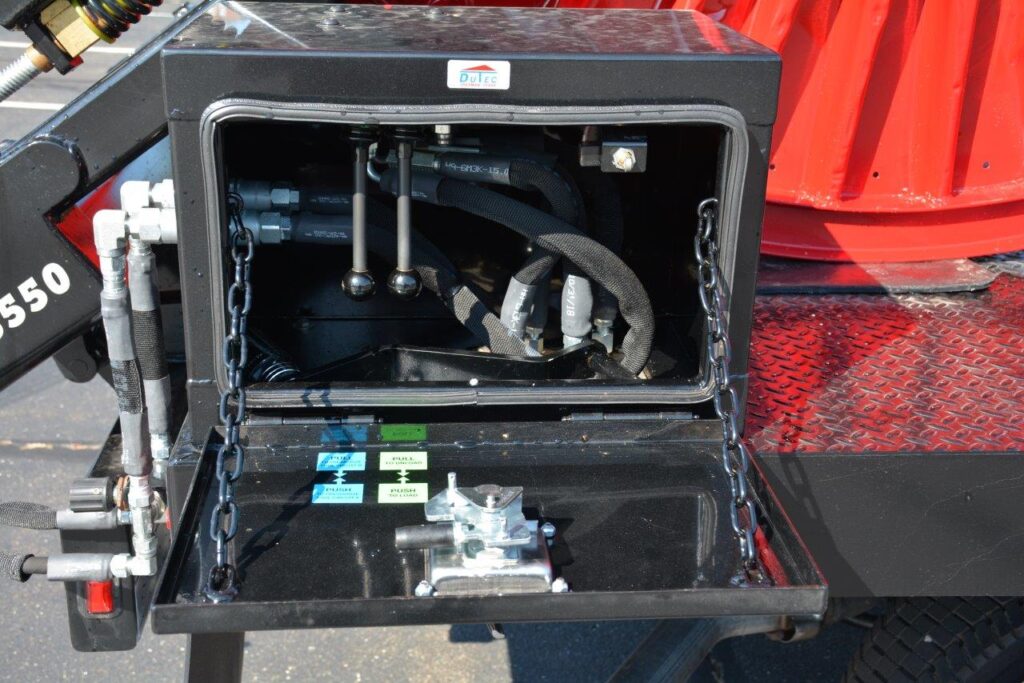

- Auxiliary Tool Circuit
- Under hood hydraulic system to power tools (4.5 to 11 GPM at 2200 psi)
- Control lever equipped with detent so valve lever can be locked in position for constant hydraulic flow
- Fully proportional direct acting valve providing maximum safety and valve control
- Power On/Off switch – Under hood hydraulic system is turned on when the lid is opened and shut off when the lid closes
Available For:

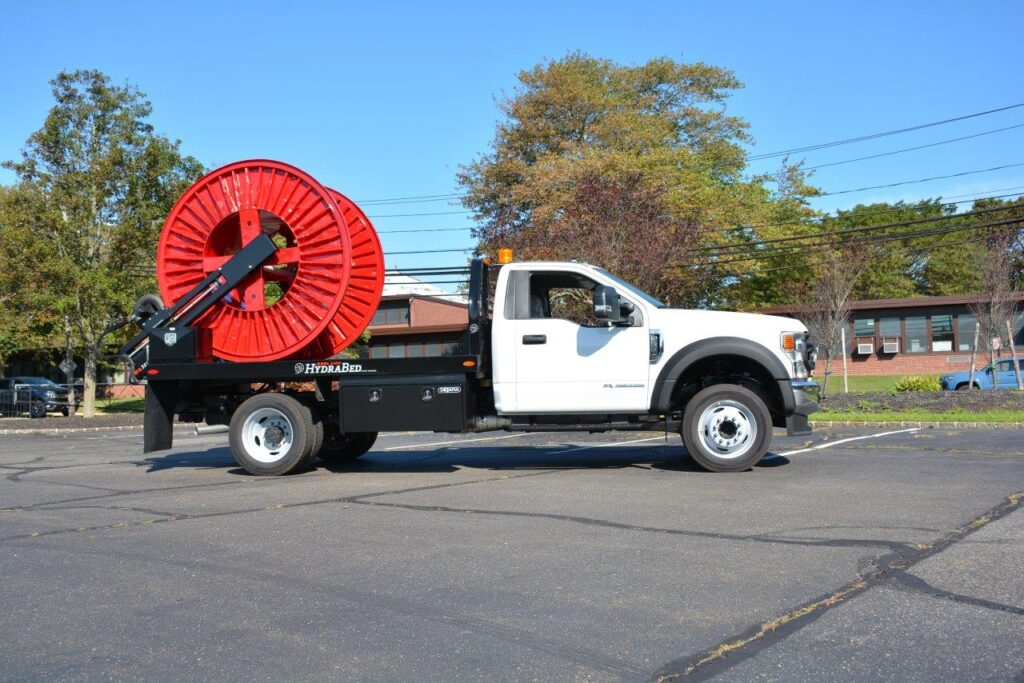

Model: RL-3350 60” CA – DRW Chassis Cab Bed Weight: 2400 lbs.
- Chevrolet 3500- 5500
- Ram 3500-5500
- Ford F35- F550
Model: RL-3550 84” CA – DRW Chassis Cab Bed Weight: 2500 lbs.
- Chevrolet 3500- 5500
- Ram 3500-5500
- Ford F35- F550
