3-4 Yard Custom Dump Body

fleet-and-municipal-dump-bodies-dejana-3-4-yard-custom-dump-truck-2

3-4 Yard Custom Dump Body

Features

  • FORD F550
  • 3-4 YARD ELIMINATOR DUMP BODY, 94” WIDTH
  • CUT OUT LEFT AND RIGHT SIDE FRONT OF BODY TO INCORPORATE CUSTOM TOOLBOXES

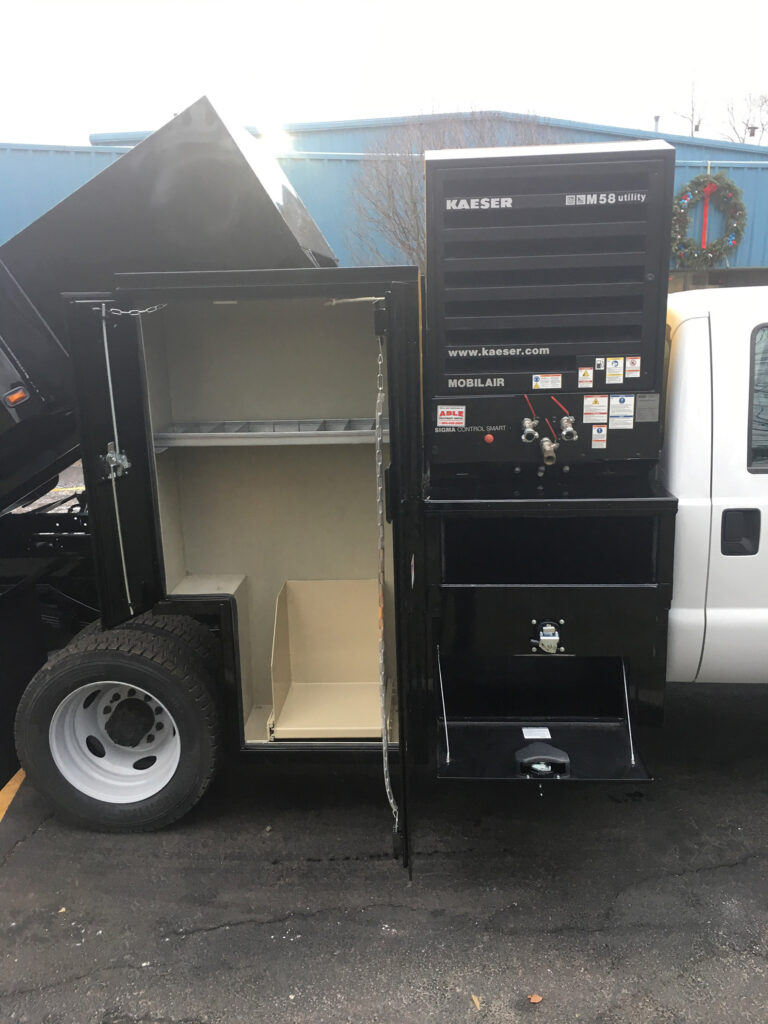

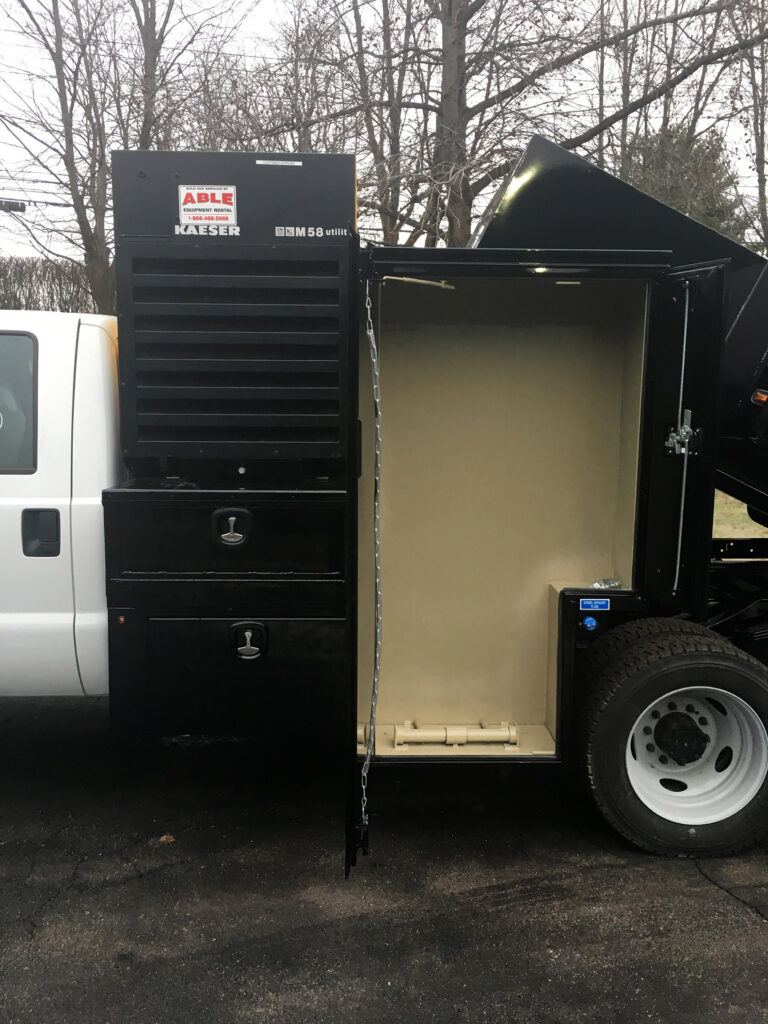

  • (2) CUSTOM TOOBOXES – 72″ H X 48″ W AT TOP, 30″ W AT BOTTOM, 19″ DEEP, MOUNTED TO LET AND RIGHT SIDE
  • LEFT SIDE TO INCORPORATE MOUNTING FOR TAMPER
  • RIGHT SIDE TO HAVE MOUNTS FOR TWO JACK HAMMERS
  • SHELF OVER JACK HAMMER HOLDERS FOR AIR HOSES

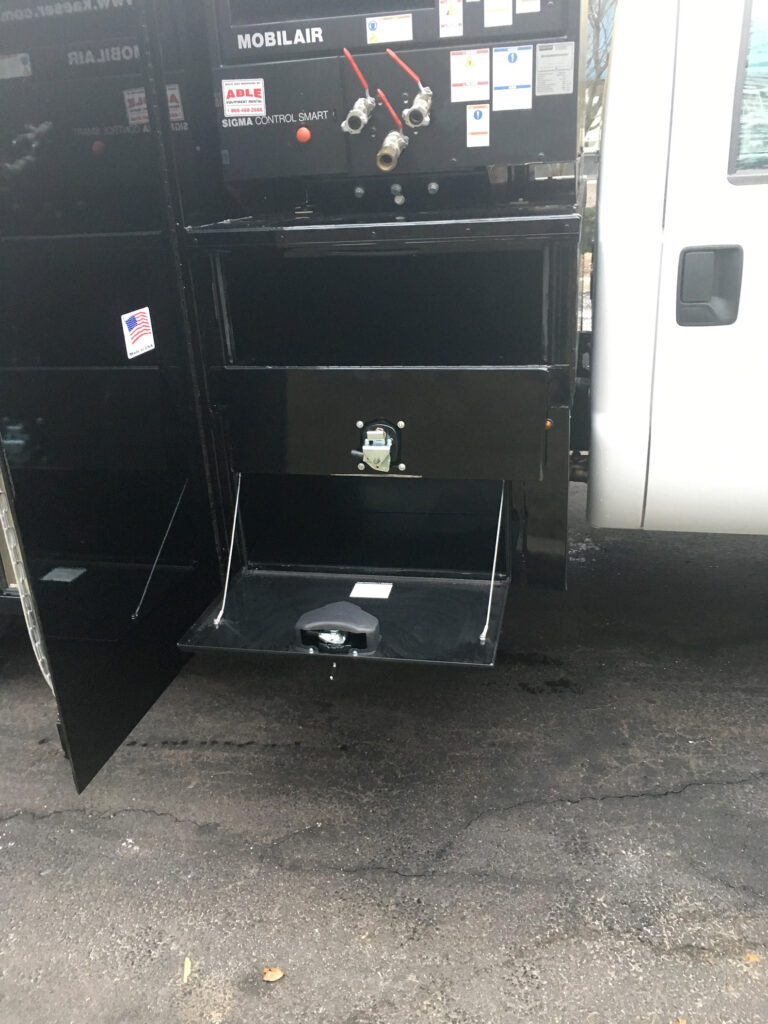

  • CUSTOM CROSS PLATFORM FOR COMPRESSOR MOUNT – MOUNTED BEHIND CAB 34″ X 96″
  • 30″ STEEL UNDERBODY BOXES MOUNTED UNDER CUSTOM PLATFORM, 1 EACH SIDE
  • TO INCLUDE 10″ H FULL WIDTH CROSS BOX ON TOP OF PLATFORM FOR MISSILE STORAGE
  • RUGBY MODEL SR-4016ED DOUBLE ACTING ELECTRIC/HYDRAULIC HOIST
  • CLASS 40 HOIST, 5.5″ BORE, 16″ STROKE, 2″ DIAMETER ROD
  • FULL PLATE COMBO HITCH WITH 2″ BALL AND ICC BUMPER
  • SHOVEL RACK
  • PLUG, 7 PRONG FLAT TRAILER
