Monroe FFDS All Season Dump Body

all-season-dump-2

Monroe FFDS All Season Dump Body

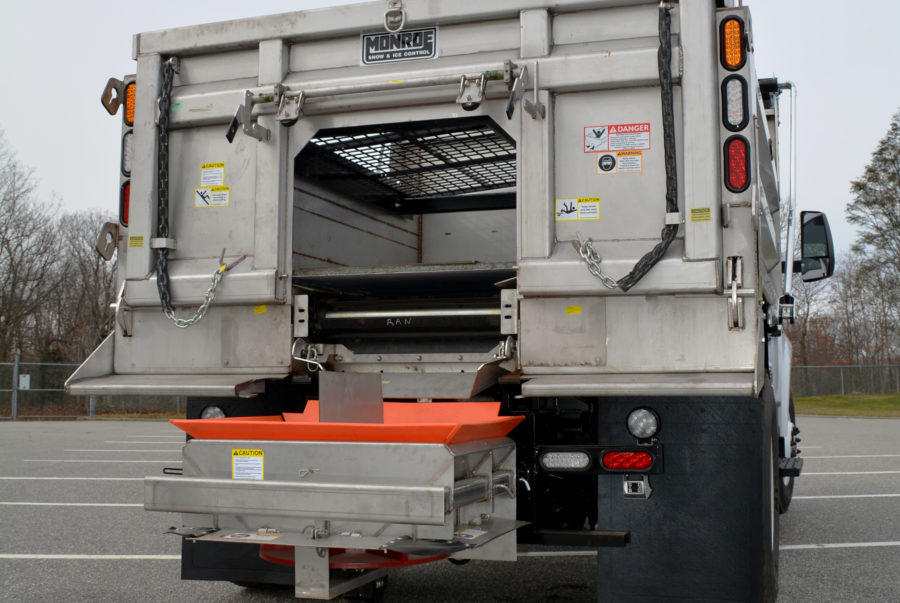

Monroe FFDS All Season Dump Body (Flat Floor Dump Spreader) is a multi-purpose body with the ability to be used as a dump body or a spreader.

Overview

Material can be discharged through the rear tailgate or the front drop chute onto a spinner assembly. Monroe FFDS All Season Dump Body is available in 9’ to 16’ lengths and in mild or stainless steel.

Features

  • 3⁄16” mild steel sides & ends
  • 3⁄16” formed dirt shedding top rail
  • 1⁄4” long sills, 14” in height with formed cross sills
  • 1⁄4” replaceable floor, supported on 12” center
  • dual 6:1 gear box drives
  • 2” drive & idler shafts with 2” heavy duty bearings
  • 11⁄4” heavy duty chain adjusters
  • Case hardened sprockets to 40-48 rockwell
  • 34” wide conveyor with 1⁄2” x 11⁄2” bar flights on 4 1⁄2” Centers
  • Heavy duty pintle chain with a 26,000 minimum tensile strength
  • Telescopic double acting nitrided hoist cylinder
  • Full opening double acting tailgate
